Remark

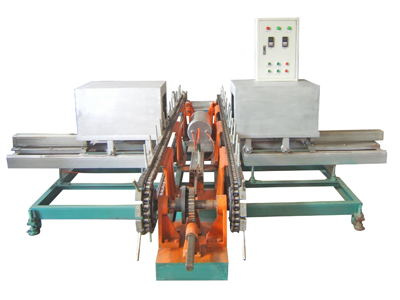

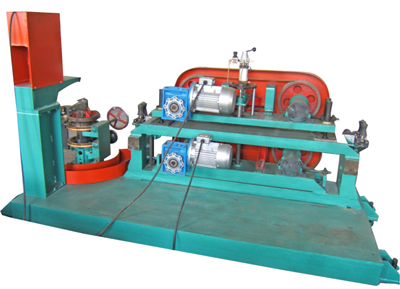

Traction mechanism

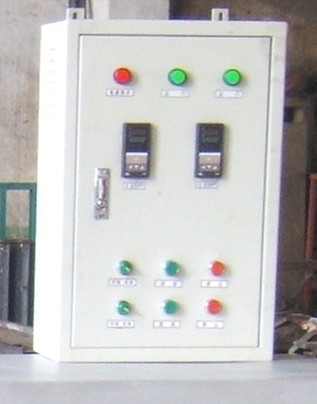

Electrical control box
Packaging machine
The PLG-type level trombone crew

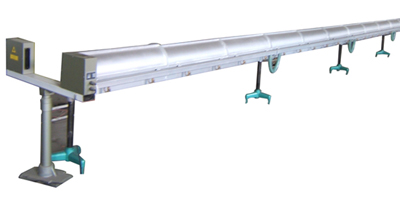

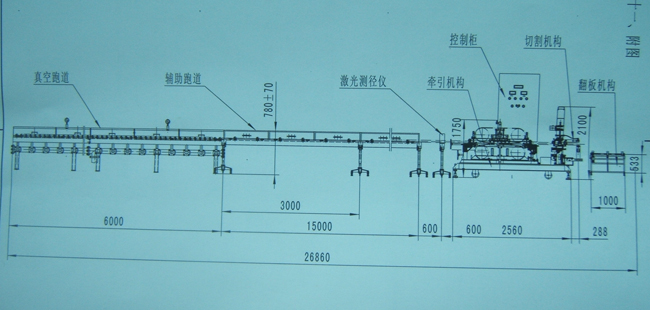

This machine is suitable to pull the pharmaceutical packaging glass tube, electric light source glass tube, solar glass tubes, glass rods, etc.. Trombone It brings together domestic and foreign advanced technology, vertical drawing horizontal traction, frequency control, automatic diameter measurement, automatic cutting, automatic sorting and other production processes. The unit consists of a vacuum runway auxiliary runway, traction machine, pipe cutting machine, flap institutions, laser measurement and control, electrical control.
The main parameters
Drawn glass tube specifications:
Ф5 ~ 72mm in diameter
Wall thickness 0.5 ~ 2mm
Length 800 ~ 3000mm
2. Automatically cutting the length of error of ± 3mm
3. Laguan-speed 20 ~ 50m/min
4. Traction wheel angle adjustment range of ± 2 °
Sorting board flip speed 120 times / min
6 laser diameter range
Single optical path Ф2 ~ 45mm
Dual optical path Ф44 ~ 120mm
7. Pinch roller pressure adjustment range 0 ~ 0.3MPa
8 power (three phase) 380V ± 10%
Power 2.57KW 9.
10 gas source 0.3MPa
11 water tap
12 tractor Dimensions 2400x1200x1800mm
13 tractor weight 2000Kg
