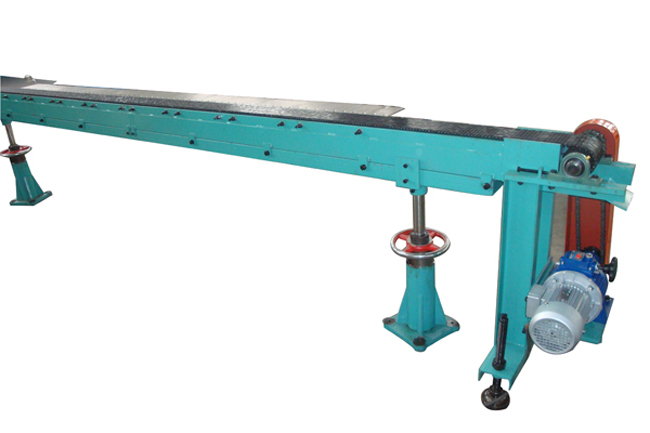

EC type tooth chain horizontal conveyor
This machine is used for lateral feed of the the annealing furnace front glass products, with products in a timely manner, smoothly delivered annealing furnace and push bottle machine, the machine uses a continuously variable transmission, or worm gearbox (plus inverter) and silent chain, its structure reasonable, reliable performance. Has a wide range of speed, smooth running, deviation, non-slip characteristics applicable to a variety of specifications annealing furnace.
The main parameters:
Transporting glass products diameter: ≤ Φ110mm
Conveyor speed: 3 ~ 24m/min
Conveyor height: 930 ~ 1100mm
Conveyor belt width: 125mm
Conveyor Belt pitch: 12.7mm
Nominal power: 0.75KW
Machine weight: ≈ 700Kg
Dimensions: (2000 + B) x500x930
