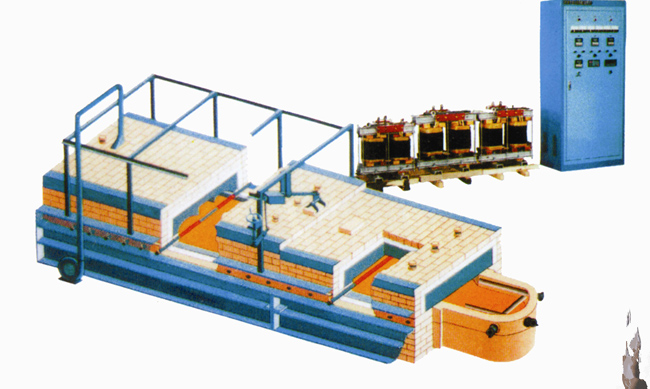

AF radiant electric heating Forehearth
Forehearth the channel the glass liquid self furnace leading to the feeder, in the groove bricks above radiant heating silicon carbide, the cryogenic material on both sides of the Forehearth automatic heating, automatic cooling using longitudinal reduce the Central high temperature material liquid through "clipping" and "valley fill" off fabric liquid temperature uniformity, stability, and achieve solid to liquid uniform high quality molding.
The series forehearth appropriate changes in length according to user needs
AF -type electric heating Forehearth
|
Model Specifications |
The width of the groove brick |
Forehearth length |
Deep within the groove brick |
Installed capacity |
|
AF406X2630 |
406 (16 " ) |
2630 |
178 |
85 KW |
|
AF406X3240 |
3240 |
85 KW | ||
|
AF660X3240 |
660 (26 " ) |
3240 |
178 |
95 KW |
|
AF660X4460 |
4460 |
95 KW | ||
|
AF660X5070 |
5070 |
95 KW | ||
|
AF910X5846 |
910 (36 " ) |
5846 |
178 |
125 KW |
|
AF910X6456 |
6456 |
125 KW | ||
|
AF910X7066 |
7066 |
125 KW |
