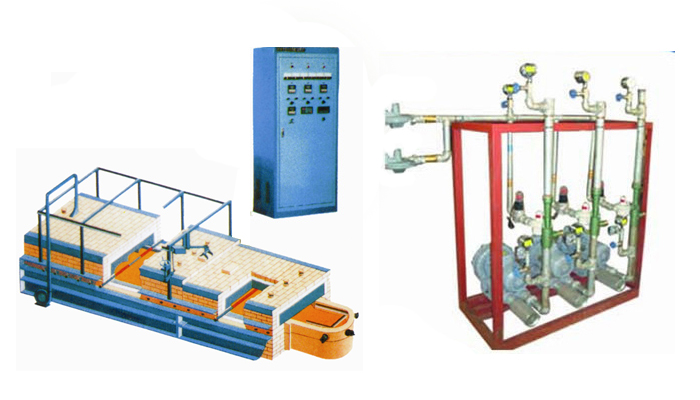

AQ Gas Forehearth
Forehearth the channel the glass liquid self furnace leading to the feeder, the use of natural gas, liquefied petroleum gas and city gas as fuel, the choice of a multi-nozzle, a small flame burning gun; combustion air and gas mixing, the longitudinal cooling air of the top of the brick structure Road, both sides of the short fire uniform heating, combustion stability, to achieve high-quality molded solid to liquid.
The series forehearth appropriate changes in length according to user needs
The main technical parameters of the AQ Gas Forehearth
|
Model Specifications |
The width of the groove brick |
Forehearth length |
Deep within the groove brick |
Control the number of segments |
|
AQ406X2630 |
406 (16 " ) |
2630 |
178 |
Three sections |
|
AQ406X3240 |
3240 |
Three sections | ||
|
AQ660X3240 |
660 (26 " ) |
3240 |
178 |
Three sections |
|
AQ660X4460 |
4460 |
Three sections | ||
|
AQ660X5070 |
5070 |
Three sections | ||
|
AQ910X5846 |
910 (36 " ) |
5846 |
178 |
Four |
|
AQ910X6456 |
6456 |
Four | ||
|
AQ910X7066 |
7066 |
Four |
