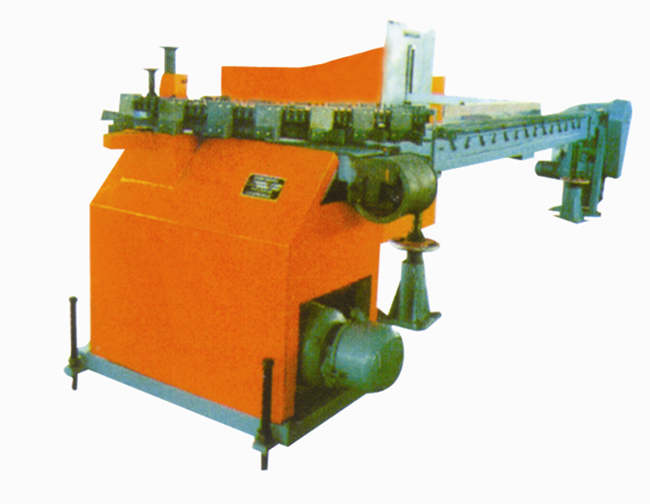

DL-arc delivery machine
The machine is located in bottle machine extend between the frame and the horizontal conveyor for glass products, turning delivery, and maintain strict synchronization run with the bottle machine, ranks machine production bottle smooth, accurate, evenly transferred to the horizontal conveyor machine, the count and the native sensor sends the signal to push bottle machine electrical control system, push the bottle machine precisely to push products into the annealing furnace.
The main parameters:
Delivery glassware height: 40 ~ 350mm
Delivery of glass products diameter: Φ40 ~ Φ106mm
Delivery glassware number: 20 to 240
The mesh belt According ground height: 930 ~ 1100mm
Machine weight: ≈ 800Kg
Dial the number and spacing of claws:
32 finger tooth spacing 76.2mm
24 finger tooth spacing 101.6mm
16 finger tooth spacing 152.4mm
12 finger tooth spacing 203.2mm
8 finger tooth spacing 304.8mm
Equipped with power: 1.5KW Permanent Magnet Synchronous Motor
Reducer: 40:1
